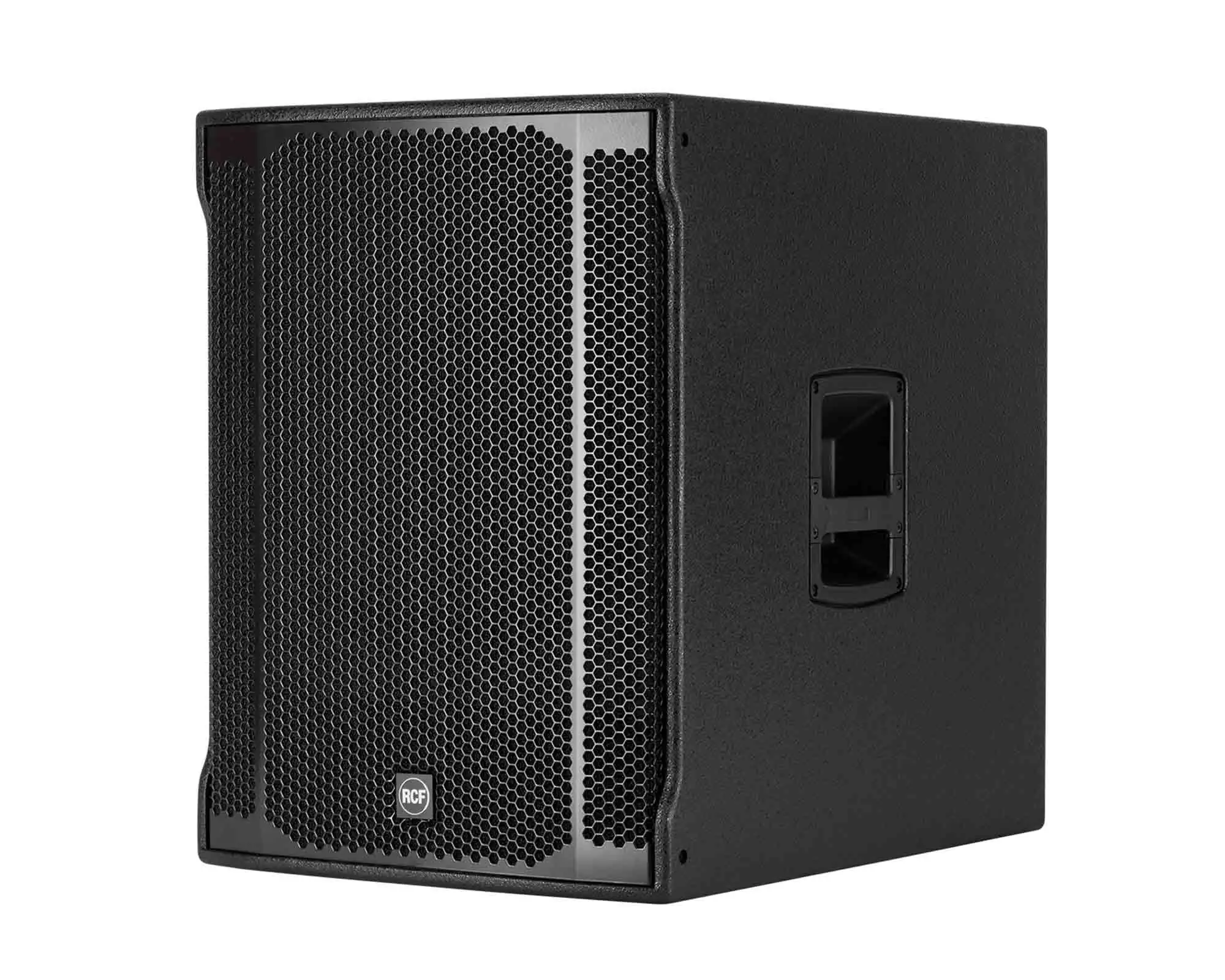

The SUB 8003-AS II active subwoofer features the latest generation of RCF woofer technology, digital amplifiers and DSP processing with higher power and enhanced performance. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands and DJs.

2200 W
135 dB max SPL
35 Hz – 120 Hz frequency response
18″ Woofer, 4.0″ v.c.
Selectable gain, X-over and delay
Birch tour grade cabinet
Stereo XLR input, Stereo XLR signal output

SPECIFICATIONS:

Acoustical Specifications
Frequency Response -3 dB: 35 Hz ÷ 120 Hz
Max SPL: 135 dB
Woofer: 18″, 4.0″ voice coil

Input/Output Section
Input connectors: Stereo XLR
Output connectors: Stereo XLR
Input sensitivity: -2 dBu / + 4 dBu

Processor Section
Crossover frequencies: Selectable Hz
Protections: thermal, rms
Limiter: dynamic limiter
Controls: Gain,EQ, phase, xover, delay, cardioid

Amplifier Specifications
Total power: 2200 W PEAK
Low frequencies: 2000 W PEAK
Total power: 1100 W RMS
Low frequencies: 1100 W RMS
Cooling: Convection
Connections: Powercon in-out

Cabinet
Cabinet Material: Baltic birch plywood
Handles: 2 side
Pole Mount/Cap: Yes
Grille: Steel
Colour: Black

Physical & Dimensions
Height: 694mm
Width: 523mm
Depth: 700mm
Weight: 43.5lbs
