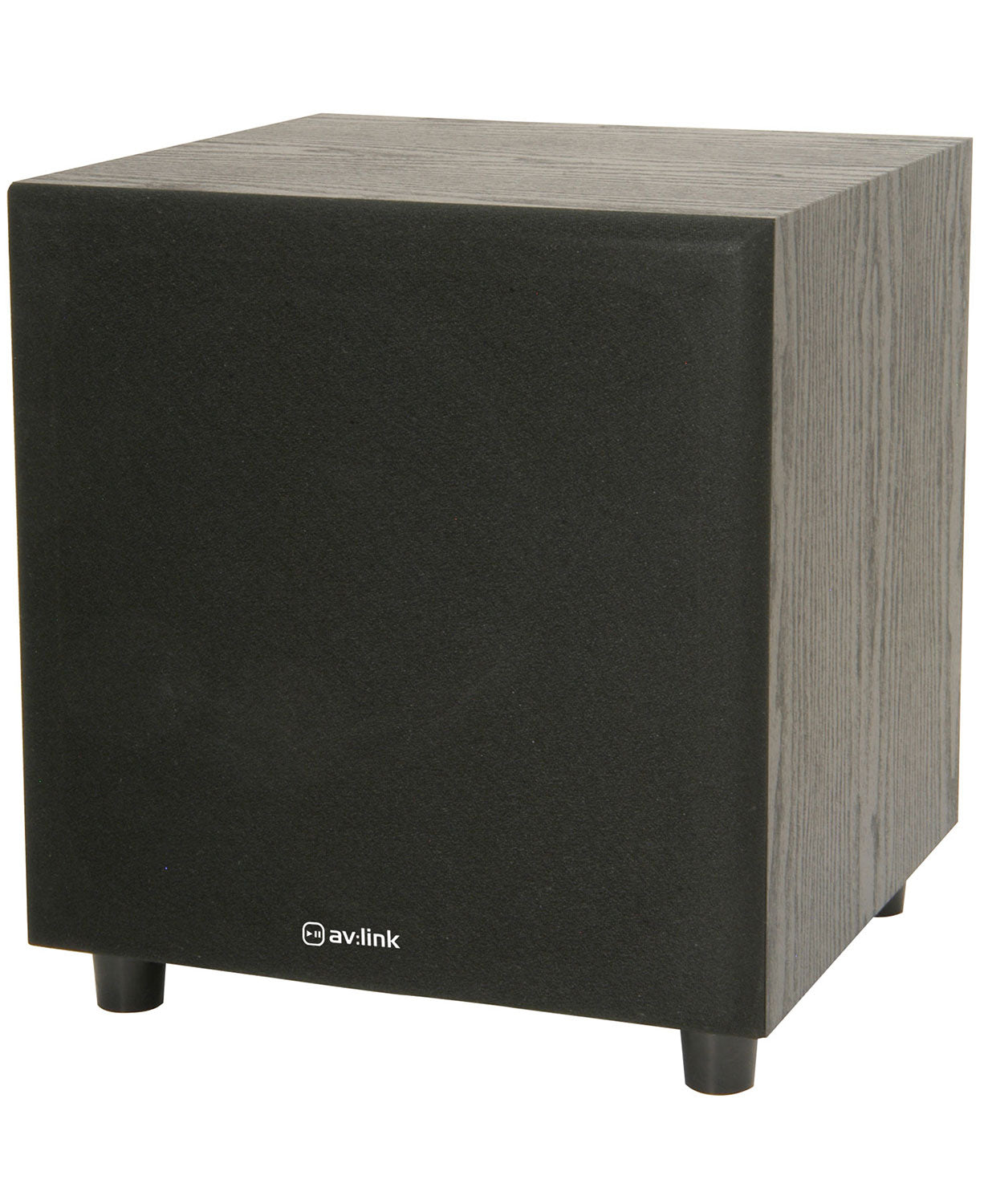

Active sub cabinet with 8″ (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. “Auto Off” function deactivates the amplifier when no incoming signal is detected to conserve energy.

SPECIFICATIONS:

Integral amplifier with variable crossover

Auto off function conserves energy

Speaker level or line level inputs

Power supply: 220-250Vac, 50/60Hz (Fig 8)

Driver: 20cm (8″) reinforced cone

Speaker impedance: 4 Ohms

Connections: Speaker level input terminals, RCA line level in

Cut-off frequency: 45 – 150Hz

Rated output power: 100W

Peak output: 200W

Frequency response: 50 – 250Hz

Dimensions: 300 x 330 x 300mm

Weight: 7.44kg
